Vacuum Hose Routing

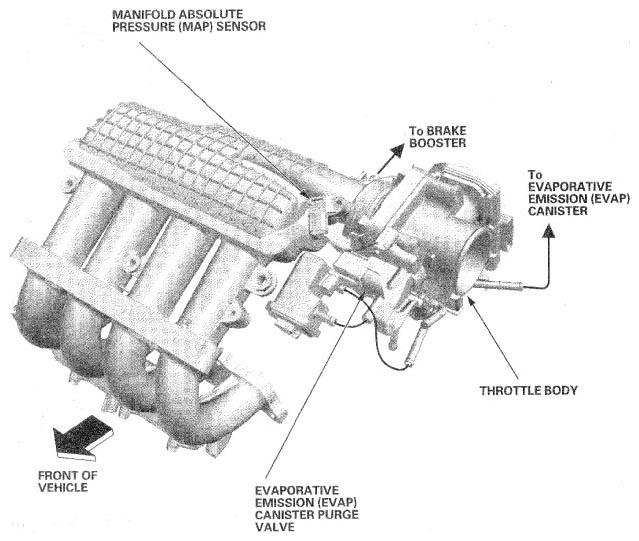

Fig 1: Vacuum Hose Routing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
