Fuel Fill Pipe Removal/Installation

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Drain the fuel tank until it is less than half full (see FUEL PRESSURE TEST ).
Remove the fuel fill cap.
Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
Remove the fuel fill pipe cover (see REAR SPRING SEAT LOWER COVER REPLACEMENT ).
Disconnect the quick-connect fittings (A) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).

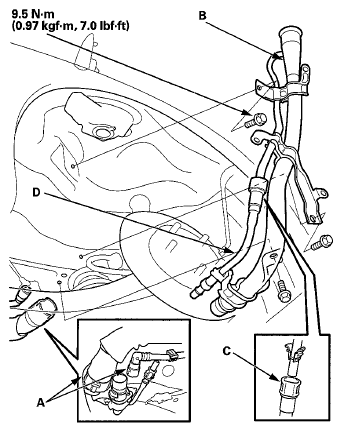

Fig 1: Disconnecting Quick-Connect Fittings With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel fill pipe (B).
Disconnect the quick-connect fittings (C) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ), then remove the vapor control valve tube (D).
Install the parts in the reverse order of removal.
NOTE: Before connecting the fuel fill pipe and the quick-connect fitting, check for dirt, and clean it if needed, taking care not to damage the fuel fill pipe and other parts.
