Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

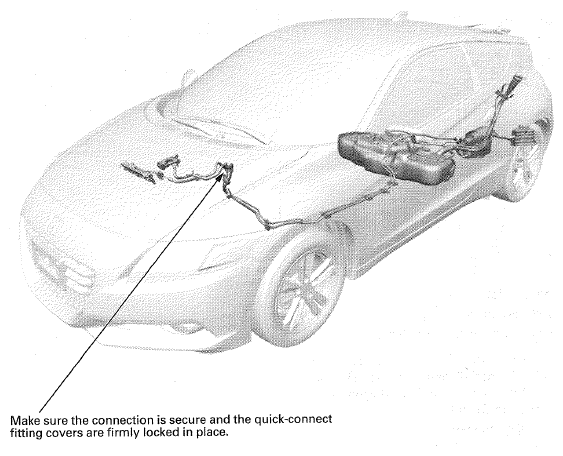

Fig 1: Inspecting Fuel Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all quick-connect fittings, and make sure they are properly positioned and tightened.

Fig 2: Checking Quick-Connect Fittings

Courtesy of AMERICAN HONDA MOTOR CO., INC.
