PCV Valve Replacement

  1. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  2. Remove the bolt (A).

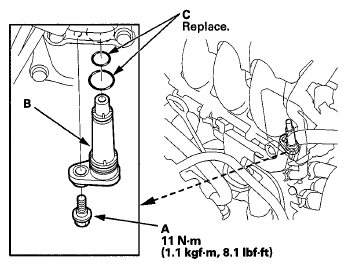

    Fig 1: Bolt, PCV Valve And O-Rings With Torque Specifications
    G06950135Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the PCV valve (B).
  4. Install the parts in the reverse order of removal.
    NOTE:
    • When installing a new PCV valve, make sure the O-rings (C) are in place.
    • When installing a used PCV valve, use new O-rings.
