Output Shaft (Countershaft) Speed Sensor Replacement: M/T

  1. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
  2. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  3. Disconnect the output shaft (countershaft) speed sensor connector (A).

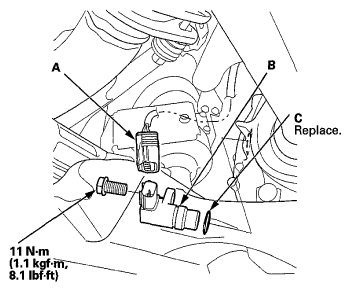

    Fig 1: Output Shaft (Countershaft) Speed Sensor Connector, Output Shaft (Countershaft) Speed Sensor And O-Ring With Torque Specifications
    G06949920Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the output shaft (countershaft) speed sensor (B).
  5. Install the parts in the reverse order of removal with a new O-ring (C).
