Rocker Arm Oil Pressure Switch Removal/Installation

Disconnect the rocker arm oil pressure switch connector (A).

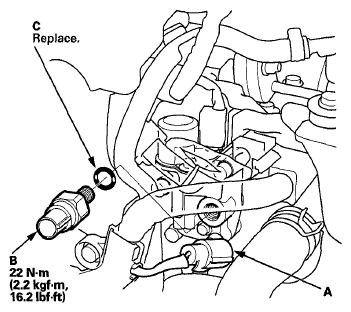

Fig 1: Rocker Arm Oil Pressure Switch Connector, Rocker Arm Oil Pressure Switch And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rocker arm oil pressure switch (B).
Install the parts in the reverse order of removal with a new O-ring (C).
