A/F Sensor Removal and Installation






A/F Sensor Removal and Installation





Removal

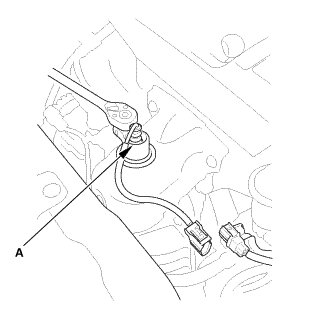

1. A/F Sensor (Sensor 1)





1. Disconnect the connector.

2. Remove the A/F sensor (A).

Installation

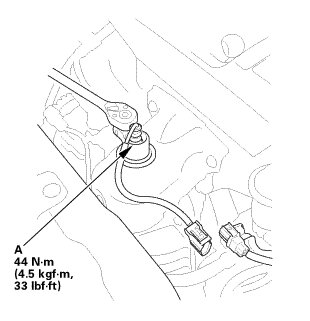

1. A/F Sensor (Sensor 1)





1. Install the A/F sensor (A).

2. Connect the connector.
