Ignition Switch/Steering Lock: Replacement

SRS components are located in the area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or servicing.

1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
2. Remove the steering column covers (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION ).
3. Disconnect the 7P connector (A) from the ignition switch (B).

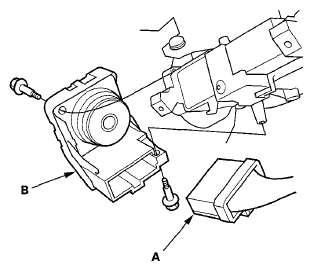

   Fig 1: Identifying 7P Connector & Ignition Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the two screws and the ignition switch.
5. Install the parts in the reverse order of removal.
6. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
