Motor Test

Remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
Test the motor in each direction by connecting battery power and ground to the power window master switch 22P connector (A) according to the table below.

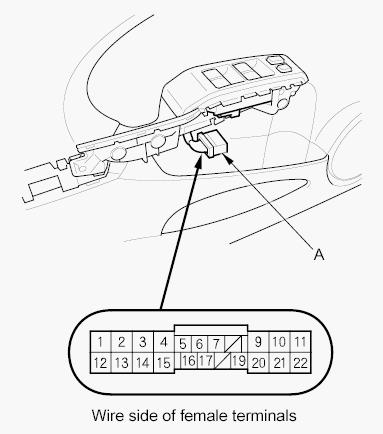

Fig 1: Identifying Power Window Master Switch 22P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Power Window Master Switch Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4, if the motor runs smoothly, go to step 8.
Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the driver's power window motor (B).

Fig 3: Identifying Driver's Power Window Motor & 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between power window master switch 22P connector terminals No. 9 and No. 10 and driver's power window motor 6P connector terminals No. 1 and No. 4 respectively. There should be continuity.

CONTINUITY REFERENCE TABLE

POWER WINDOW MASTER SWITCH 22P CONNECTOR	DRIVER'S POWER WINDOW MOTOR 6P CONNECTOR
9	1
10	4

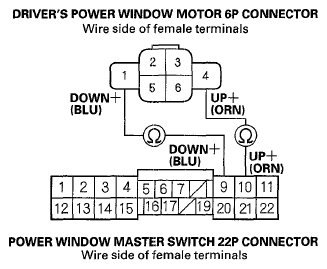

Fig 4: Checking Continuity Between Power Window Master Switch 22P & Driver's Power Window Motor 6P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the wire harness is OK, the driver's power window motor is faulty; replace the driver's door regulator (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).
Pulser Test

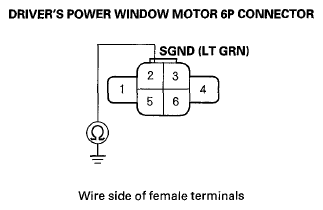

Check for continuity between the driver's power window motor 6P connector terminal No. 2 and body ground. There should be continuity.
- If there is continuity, go to step 9.
- If there is no continuity, check for an open or high resistance in the BLK wire or poor ground (G501).
Do the power window master switch test for terminals No. 5, No. 6, and No. 16 (see POWER WINDOW MASTER SWITCH TEST ).
