Front Passenger's Power Window Motor Test

Remove the front passenger's power window switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
Test the motor in each direction by connecting battery power and ground to the front passenger's power window switch 5P connector (A) according to the table below.

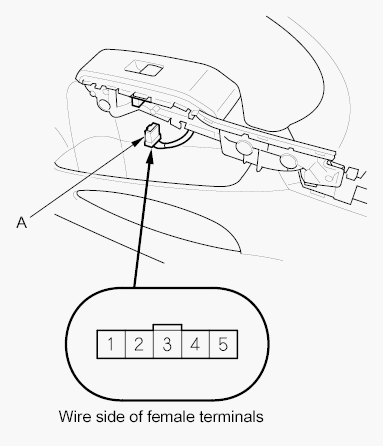

Fig 1: Identifying Front Passenger's Power Window Switch 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Front Passenger's Power Window Motor Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the front passenger's power window motor (B).

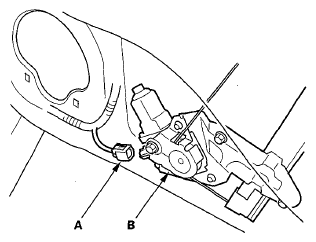

Fig 3: Identifying Front Passenger's Power Window Motor & 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between front passenger's power window switch 5P connector terminals No. 2 and No. 5 and front passenger's power window motor 2P connector terminals No. 1 and No. 2 respectively. There should be continuity.

CONTINUITY REFERENCE TABLE

FRONT PASSENGER'S POWER WINDOW SWITCH 5P CONNECTOR	FRONT PASSENGER'S POWER WINDOW MOTOR 2P CONNECTOR
2	2
5	1

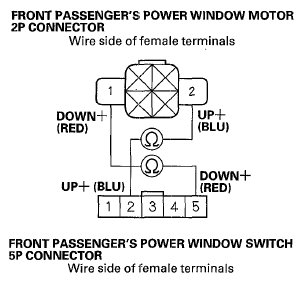

Fig 4: Checking Continuity Between Front Passenger's Power Window Switch 5P & Front Passenger's Power Window Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the wire harness is OK, the front passenger's power window motor is faulty; replace the front passenger's door regulator (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).
