Passenger's Power Window Switch Replacement

NOTE: The graphic shows front passenger's power window switch.

Remove the door panel:
- Front passenger's (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Rear (see REAR DOOR PANEL REMOVAL/INSTALLATION )

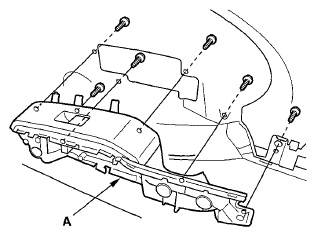

Remove the screws and the grip base (A).

Fig 1: Identifying Grip Base & Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the switch panel (A) from the grip base.

Fig 2: Identifying Switch Panel & Grip Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws and replace the passenger's power window switch (B).
Install the parts in the reverse order of removal.
