Passenger's Power Window Switch Test

Remove the grip cover:
- Front passenger's (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Rear (see REAR DOOR PANEL REMOVAL/INSTALLATION )
Disconnect the 5P connector (A) from the passenger's window switch.
Front passenger's

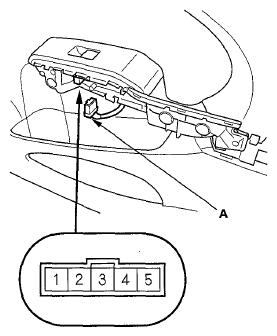

Fig 1: Identifying Front Passenger's Window Switch 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

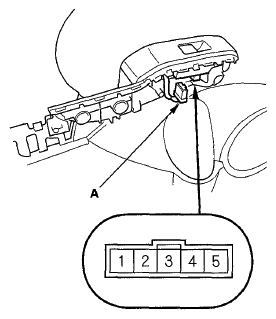

Fig 2: Identifying Rear Passenger's Window Switch 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table below.

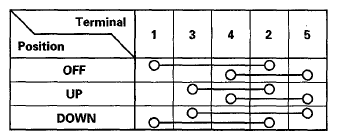

Fig 3: Identifying Switch Position Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
