Power Window Master Switch Replacement

Remove the door panel (A) (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

Fig 1: Identifying Door Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the switch panel (A) from the grip base.

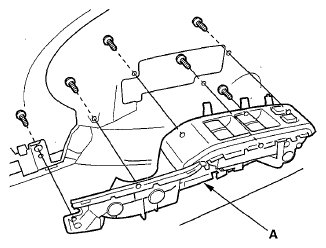

Fig 2: Identifying Switch Panel From Grip Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws and replace the power window master switch (B).
Install the parts in the reverse order of removal.
