Power Window Master Switch Test

Remove the grip cover (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 22P connector (A) from the power window master switch.

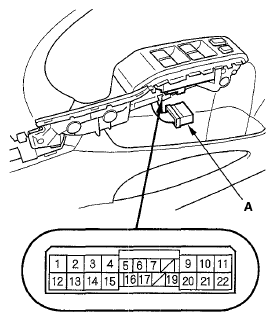

Fig 1: Identifying Power Window Master Switch & 22P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the tables.
Driver's Switch

The driver's switch is combined with the control unit so you cannot isolate the switch to test it. Instead, run the master switch input test procedures (see POWER WINDOW MASTER SWITCH INPUT TEST ). If the tests are normal, the driver's switch must be faulty. Replace the switch.

Front Passenger's Switch

Fig 2: Identifying Front Passenger's Switch Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right Rear Switch

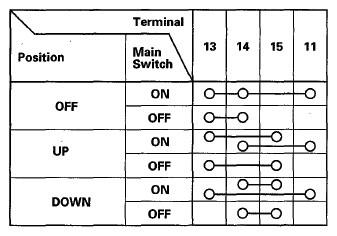

Fig 3: Identifying Right Rear Switch Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Left Rear Switch

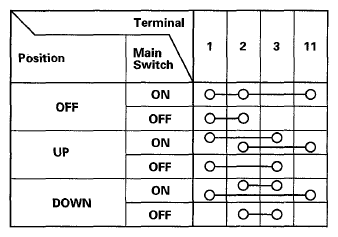

Fig 4: Identifying Left Rear Switch Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
