VSA Modulator-Control Unit Removal and Installation: Removal

Turn the ignition switch to LOCK (0).
Remove the washer reservoir WASHER RESERVOIR REPLACEMENT
Disconnect the VSA modulator-control unit 36P connector (A) by pushing the lock (B) and pulling down the lever (C); the connector disconnects itself.

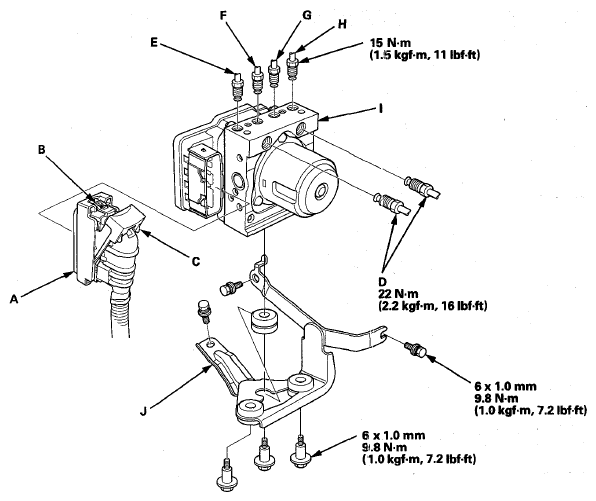

Fig 1: Identifying VSA Modulator-Control Unit Related Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit.
NOTE: Brake lines are connected to the master cylinder (D) and to the left-rear (E), the right-front (F), the left-front (G), and the right-rear (H) brake systems.
Remove the VSA modulator-control unit (I) with the bracket (J) from the body.
Remove the VSA modulator-control unit from the bracket.
