VSA Off Switch Test/Replacement

NOTE: If the low tire pressure indicator turns ON, the VSA cannot be turned OFF. Check the tire pressure first.

Turn the ignition switch to LOCK (0).
Remove the driver's dashboard lower cover DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION
Push out the VSA OFF switch (A) from the driver's dashboard lower cover.

Fig 1: Identifying VSA OFF Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
On the switch side, check for continuity between VSA OFF switch 5P connector terminals No. 1 and No. 2. There should be continuity when the button is released, and no continuity when the button is pressed.

Fig 2: Checking Continuity Between VSA OFF Switch 5P Connector Terminals No. 1 And 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

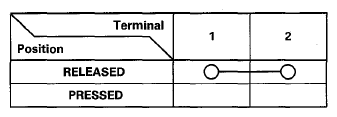

Fig 3: VSA OFF Switch Terminal Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
On the switch side, check for continuity between VSA OFF switch 5P connector terminals No. 4 and No. 5. There should be continuity at all times.

Fig 4: Checking Continuity Between VSA OFF Switch 5P Connector Terminals No. 4 And 5
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the cover (A), and replace the bulb (B).

Fig 5: Removing Cover And Bulb
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the VSA OFF switch in the reverse order of removal.
