Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Remove the grommet (A), then disconnect the wheel speed sensor connector (B).

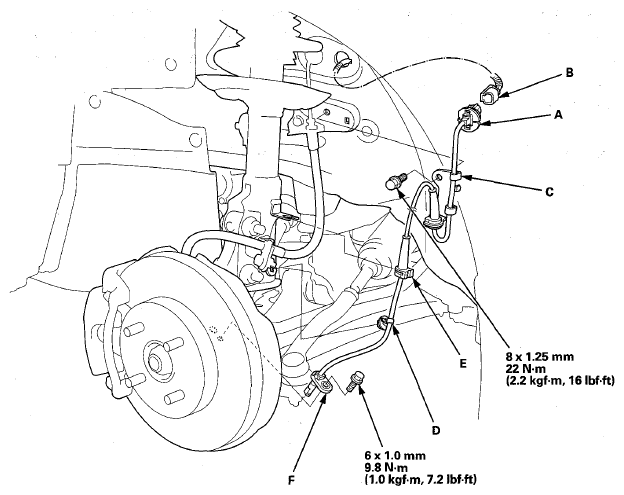

    Fig 1: Wheel Speed Sensor, Connector, Grommet, Bracket, Clip And Wire Guide Rubber With Torque Specification (Front)
    G08083040Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bracket (C), the clip (D), and the wire guide rubber (E).
  4. Remove the bolt and the wheel speed sensor (F).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
    • Make sure the grommet is installed properly.
    • Make sure there is no debris in the sensor mounting hole.
