Wheel Speed Sensor Replacement: Rear
- Turn the ignition switch to LOCK (0).

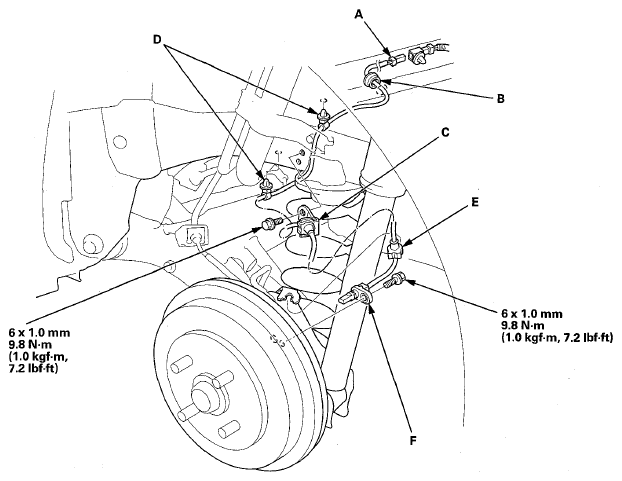

- Pull back the carpet under the rear seat, then disconnect the wheel speed sensor connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the grommet (B), the bracket (C), the clips (D), and the wire guide rubber (E).
- Remove the bolt and the wheel speed sensor (F).
- Install the wheel speed sensor in the reverse order of removal, and note these items:
- Do not twist the sensor wires.
- If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
- Make sure the grommet is installed properly.
- Make sure there is no debris in the sensor mounting hole.
