Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools when replacing the sensor.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center console CENTER CONSOLE REMOVAL/INSTALLATION
  3. Disconnect the yaw rate-lateral acceleration sensor 5P connector (A), then remove the yaw rate-lateral acceleration sensor (B).

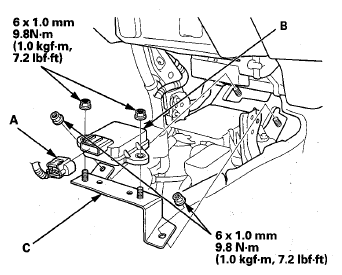

    Fig 1: Yaw Rate-Lateral Acceleration Sensor 5P Connector, Bracket And Nuts With Torque Specification
    G08083031Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for deformation in the bracket (C). If necessary replace it.
  5. Install the yaw rate-lateral acceleration sensor in the reverse order of removal.
  6. Do the VSA sensor neutral position memorization (see YAW RATE-LATERAL ACCELERATION SENSOR REPLACEMENT  ).
