Relays And Control Unit Locations: Dashboard

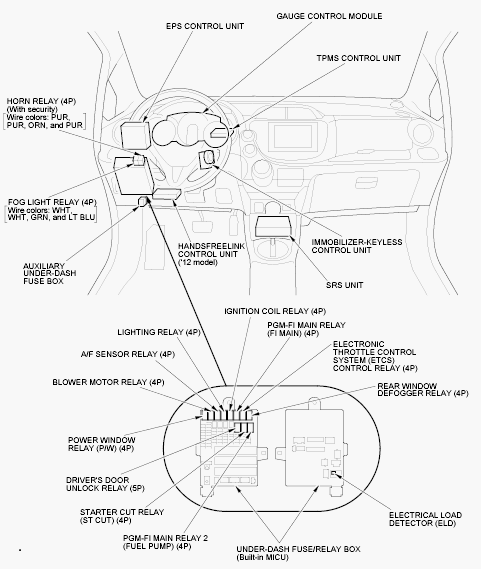

Fig 1: Identifying Dashboard Relay & Control Unit Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With Navigation System

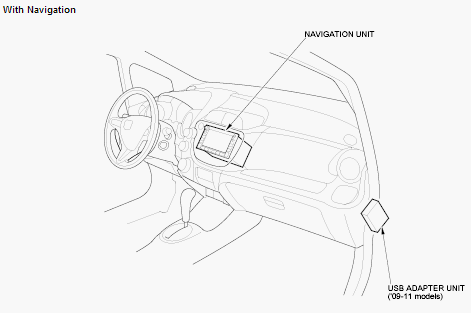

Fig 2: Identifying Dashboard Relay & Control Unit Replacement Components (With Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Without Navigation System

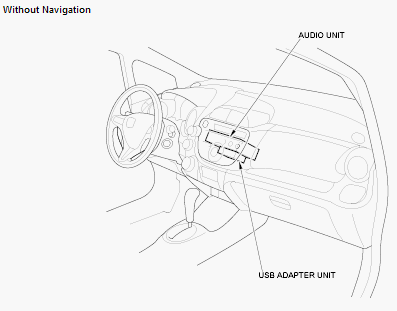

Fig 3: Identifying Dashboard Relay & Control Unit Replacement Components (Without Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
