Engine Compartment

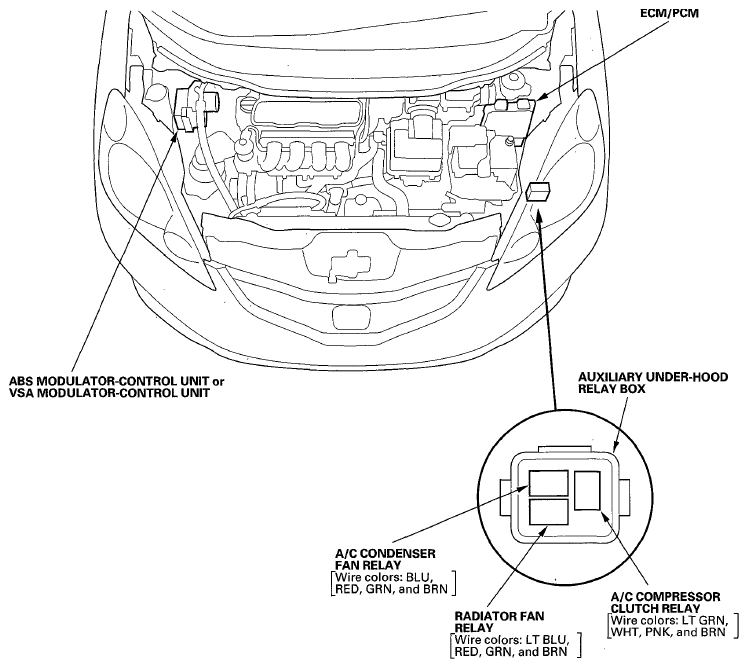

Fig 1: Identifying Engine Compartment Relay & Control Unit Replacement Components
G05959881Courtesy of AMERICAN HONDA MOTOR CO., INC.
