Special Tools Required
Relay puller 07AAC-000A1A0
Use this chart to identify the type of relay, then do the test listed for it.
RELAY TEST REFERENCE TABLE
| Relay | Test |
|---|---|
| A/C compressor clutch relay | Normally-open Four-terminal type |
| A/C condenser fan relay | |
| A/F sensor relay* | |
| Blower motor relay* | |
| ETCS control relay* | |
| Fog light relay | |
| Horn relay | |
| Ignition coil relay* | |
| Lighting relay* | |
| PGM-FI main relay 1 (FI MAIN)* | |
| PGM-FI main relay 2 (FUEL PUMP)* | |
| Power window relay (P/W)* | |
| Radiator fan relay | |
| Rear window defogger relay* | |
| Starter cut relay (ST CUT)* | |
| Driver's unlock relay* | Five-terminal type |
NOTE:

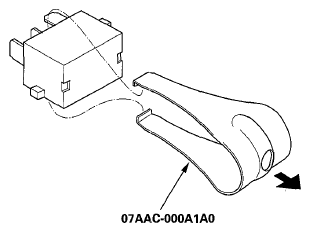

* : Carefully remove the relay from the under-dash fuse/relay box using the relay puller. Do not use pliers. Pliers will damage the relay (see illustration below)..
