Exploded View

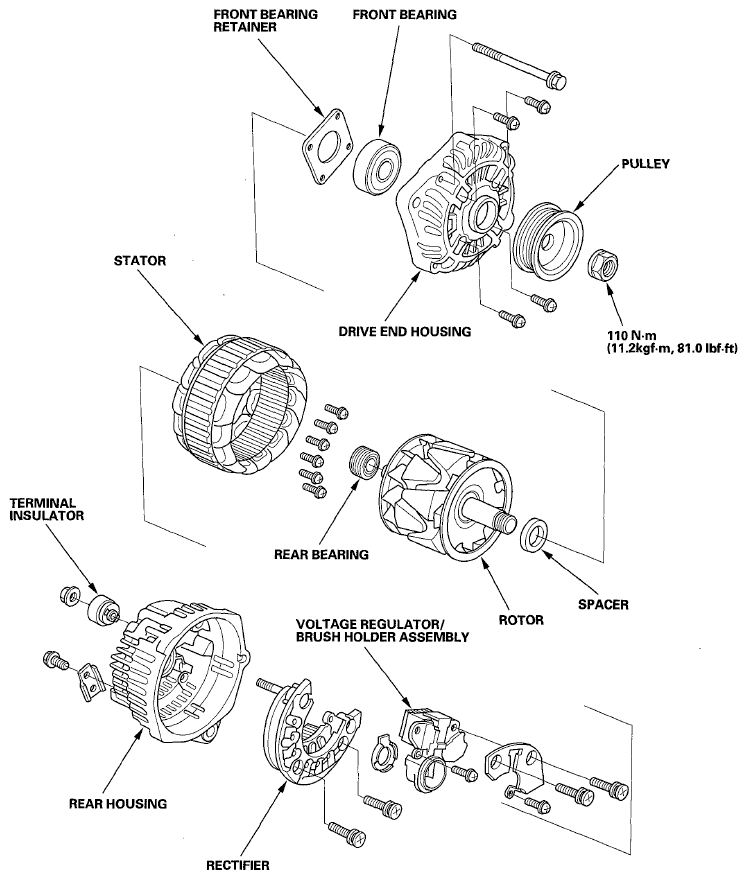

Fig 1: Identifying Alternator Replacement Components With Torque Specifications
G05952321Courtesy of AMERICAN HONDA MOTOR CO., INC.
