Stator Test

Check that there is continuity between each lead (A).
- If there is no continuity, replace the stator.

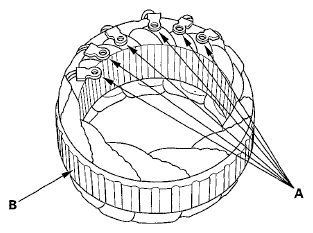

  Fig 1: Identifying Lead & Coil Core
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between each lead and the coil core (B).
- If there is continuity, replace the stator.
