Alternator Removal and Installation: Installation

Install the alternator.

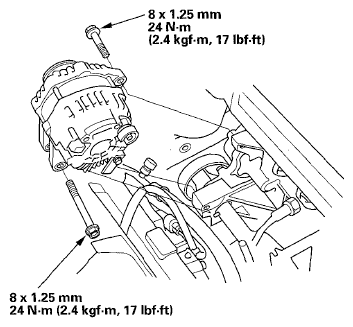

Fig 1: Alternator & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the alternator connector (A) and BLK wire (B), then install the harness clamp (C) to the alternator.

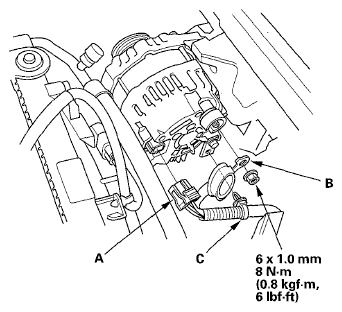

Fig 2: Alternator Connector, BLK Wire & Harness Clamp With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the intake manifold (see INSTALLATION ).
Install the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
