Drive Belt Inspection
- Inspect the belt for cracks or damage. If the belt is cracked or damaged, replace it (see DRIVE BELT INSPECTION ).

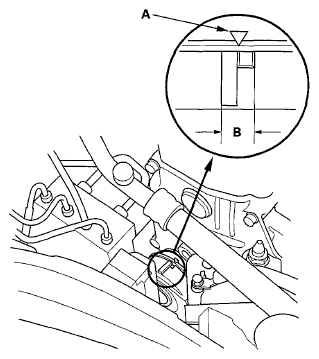

- Check that the position of the auto-tensioner indicator's pointer (A) is within the standard range (B) as shown below. If it is out of the standard range, replace the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
