Circuit Diagram - Without Security

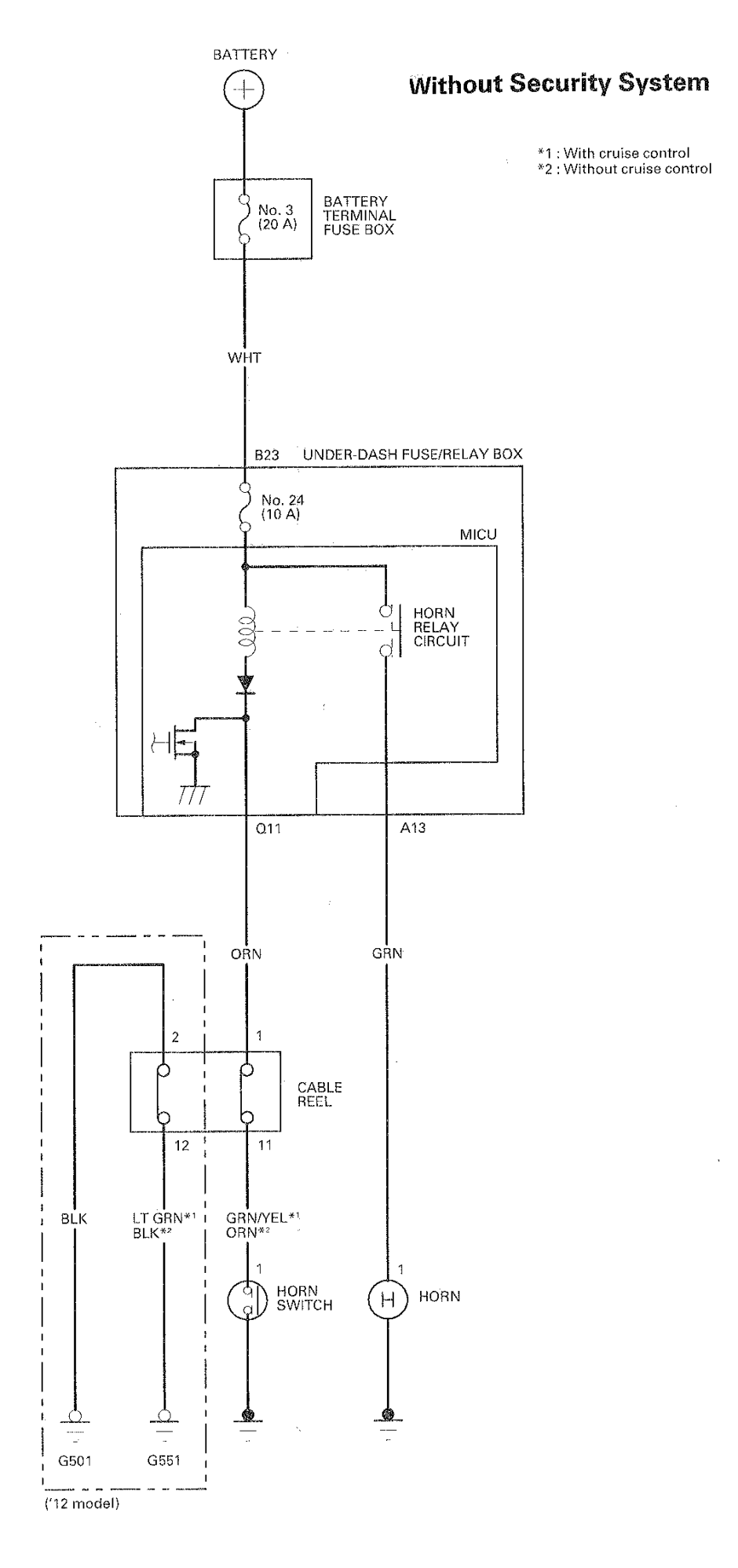

Fig 1: Identifying Horns - Circuit Diagram (Without Security)
G05959980Courtesy of AMERICAN HONDA MOTOR CO., INC.
