2012 Model

  1. Remove the front grille cover (see FRONT GRILLE COVER REPLACEMENT ).
  2. Disconnect the 1P connector (A) from the horn (B).

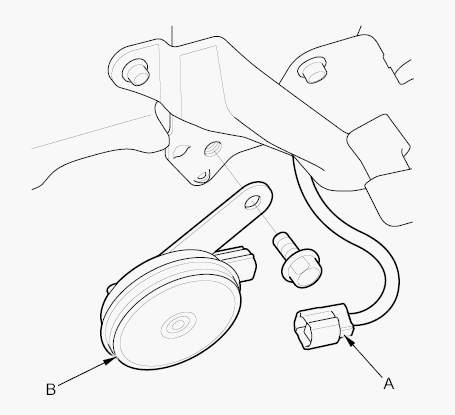

    Fig 1: Identifying 1P Connector From Horn
    G00509551Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Connect the terminal (A) to the battery power, and the bracket (B) to body ground.

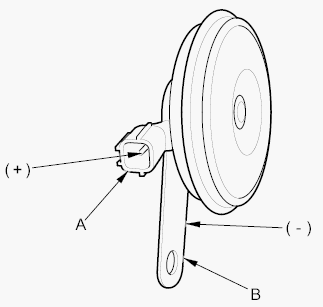

    Fig 2: Identifying Bracket To Body Ground
    G00509552Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the horn does not sound, replace it.
