Honda
>>
2012
>>
Fit Base, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

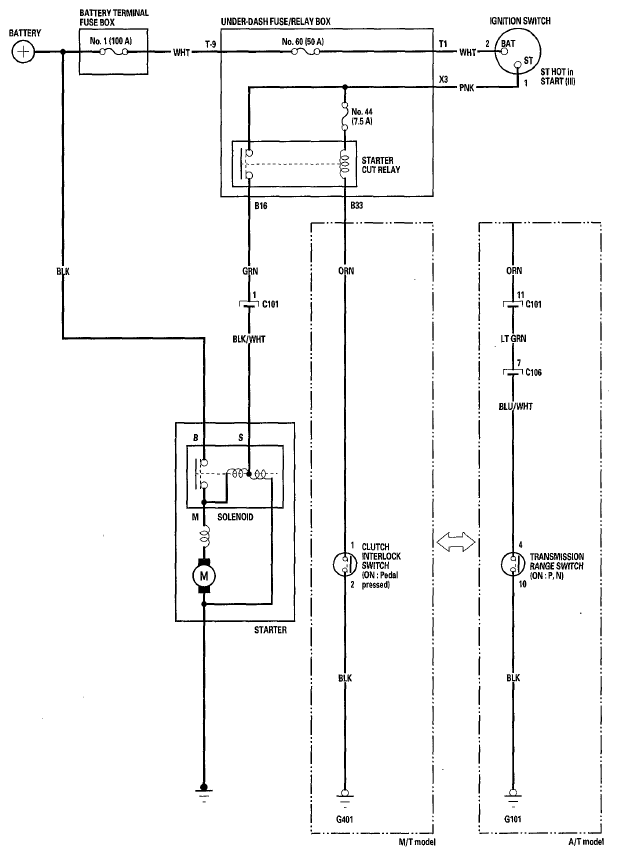

Fig 1: Identifying Starter System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
