M/T Model

Disconnect the clutch interlock switch connector (A).

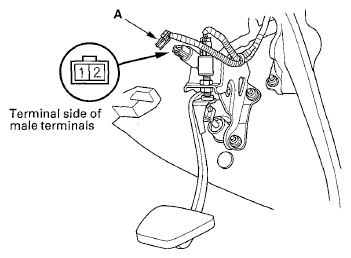

Fig 1: Identifying Clutch Interlock Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals according to the table below.
- If the continuity is not as specified, replace the clutch interlock switch.
- If OK, install the clutch interlock switch, and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).

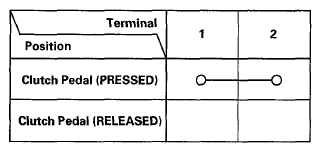

  Fig 2: Identifying Clutch Interlock Switch Connector Continuity Table
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
