PCV Valve Inspection

  1. Remove the harness holder (A).

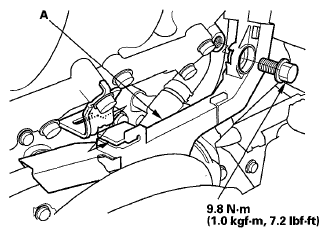

    Fig 1: Harness Holder With Torque Specifications
    G05953231Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check the PCV valve (A), the hoses (B), the pipe (C), and the connections for leaks or restrictions.

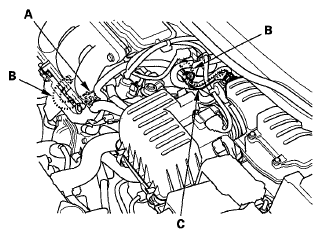

    Fig 2: Identifying PCV Valve, Hoses & Pipe
    G05953232Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. At idle, make sure there is a clicking sound from the PCV valve when the hose between the PCV valve and the intake manifold is lightly pinched (A) with your fingers or pliers.

    If there is no clicking sound, check the PCV valve washer for cracks or damage. If the washer is OK, replace the PCV valve and recheck.

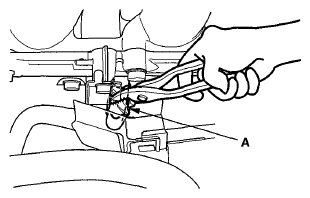

    Fig 3: Pinching PCV Valve
    G05953233Courtesy of AMERICAN HONDA MOTOR CO., INC.
