Connecting Rod Bolt Inspection

  1. Measure the diameter of each connecting rod bolt at point A and point B with a micrometer.

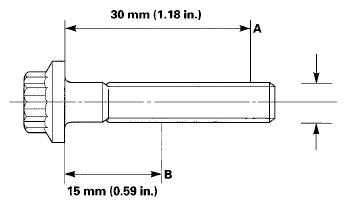

    Fig 1: Identifying Difference In Diameter Between Point A & Point B
    G05952628Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Calculate the difference in diameter between point A and point B.

    Point A-Point B = Difference in Diameter

    Difference in Diameter:

    Specification: 0-0.05 mm (0-0.002 in.)

  3. If the difference in diameter is out of specification, replace the connecting rod bolt.
