At Low Engine Speed

At low engine speed, the rocker arm oil control solenoid is turned off by the ECM/PCM. Oil pressure from the rocker arm oil control valve does not enter the intake rocker shaft. Both intake rocker arms are lifted by the low lift cam lobe.

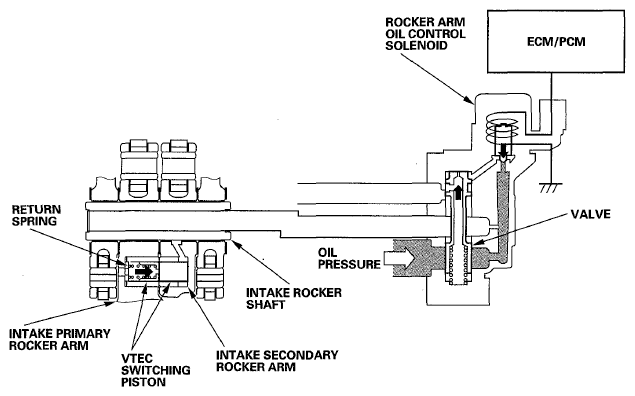

Fig 1: Identifying VTEC System Operation Diagram - At Low Engine Speed

Courtesy of AMERICAN HONDA MOTOR CO., INC.
