Fuel Pressure Regulator Replacement
- Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION
).

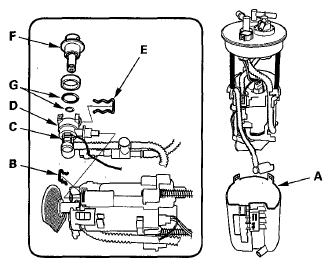

- Remove the reservoir (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the clip (B), and the ground wire (C), then remove the bracket (D).
- Remove the clip (E), then remove the fuel pressure regulator (F).
- Install the parts in the reverse order of removal with new O-rings (G) and a new bracket. When installing the fuel tank unit, align the marks on the unit and the fuel tank (see FUEL TANK UNIT REMOVAL AND INSTALLATION
).
NOTE:
- Coat the O-rings with clean engine oil; do not use any other oils or fluids.
- Do not pinch the O-rings during installation.
- Use all the new parts supplied in the pressure regulator replacement kit.
