CKP Sensor Replacement

Raise the vehicle on a lift.
NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.
Remove the CKP sensor cover (A).

Fig 1: CKP Sensor Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CKP sensor connector (A).

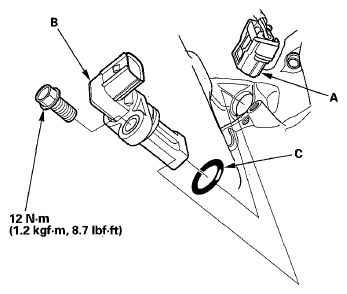

Fig 2: CKP Sensor Connector, CKP Sensor & O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the CKP sensor (B).
Install the parts in the reverse order of removal with a new O-ring (C).
Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
Check the engine oil level, and add more oil if needed.
