CMP Sensor Replacement

  1. Remove the cowl cover (see COWL COVER REPLACEMENT ) and the under-cowl panel (see UNDER-COWL PANEL REPLACEMENT ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  3. Disconnect the CMP sensor connector (A).

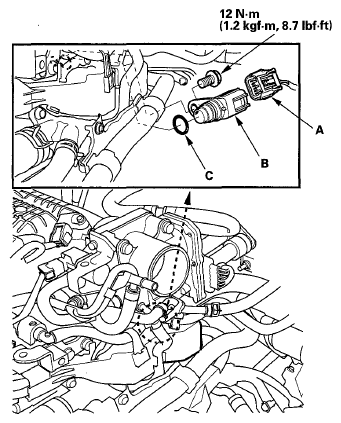

    Fig 1: CMP Sensor Connector, CMP Sensor & O-Ring With Torque Specifications
    G05953008Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the CMP sensor (B).
  5. Install the parts in the reverse order of removal with a new O-ring (C).
