ATF Temperature Sensor Test/Replacement

  1. Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  2. Remove the splash shield.

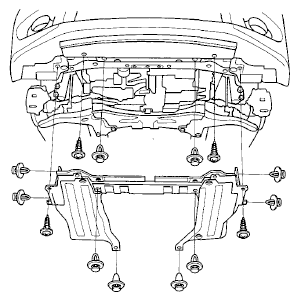

    Fig 1: Removing Splash Shield
    G06768452Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the shift solenoid harness connector.

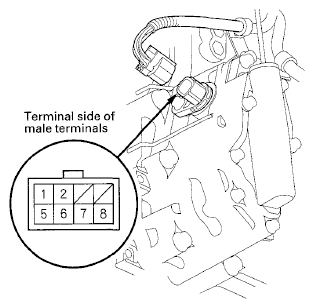

    Fig 2: Disconnecting Shift Solenoid Harness Connector
    G06768453Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Measure the ATF temperature sensor resistance between shift solenoid harness connector terminals No. 6 and No. 7.

    Standard: 50 Ω-25 kΩ

  5. If the resistance is out of standard, replace the ATF temperature sensor and the solenoid harness; go to step 6. The ATF temperature sensor is not available separately from the shift solenoid harness. If the resistance is within the standard, connect the connector securely, and install the splash shield.
  6. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

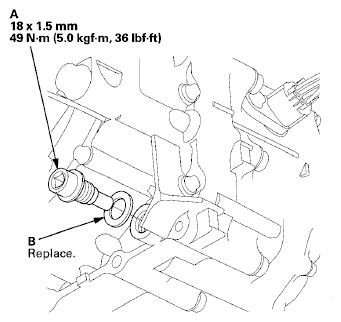

    Fig 3: Drain Plug With Torque Specifications
    G06768454Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Reinstall the drain plug with a new sealing washer (B).
  8. Remove the shift solenoid valve cover (A), the dowel pins (B), and the gasket (C).

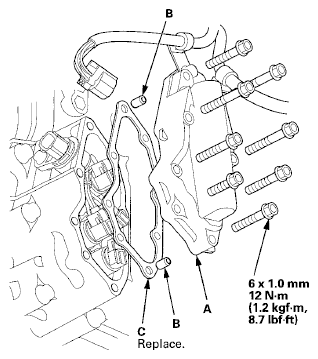

    Fig 4: Removing Shift Solenoid Valve Cover, Dowel Pins, And Gasket With Torque Specifications
    G06768455Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Disconnect the connectors, remove the shift solenoid harness connector (E), and replace it.

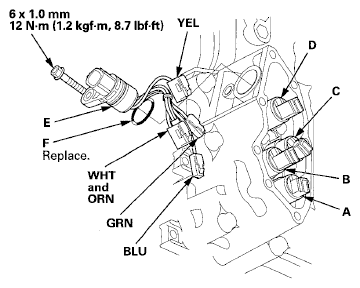

    Fig 5: Removing Shift Solenoid Harness Connector With Torque Specifications
    G06768456Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install a new O-ring (F) on the new shift solenoid harness connector, and install the connector in the transmission housing.
  11. Connect the WHT and ORN wires connector to shift solenoid valve B. The ATF temperature sensor is assembled in the WHT wires connector.
  12. Connect the harness terminals to the solenoids:
    • BLU wire connector to shift solenoid valve A.
    • GRN wire connector to shift solenoid valve C.
    • YEL wire connector to shift solenoid valve D.
  13. Install the shift solenoid valve cover, the dowel pins, and a new gasket.
  14. Check the connector for rust, dirt, or oil, then connect it securely.
  15. Refill the transmission with ATF (see (see step  6 ).
  16. Install the splash shield.
