Five-position Transmission

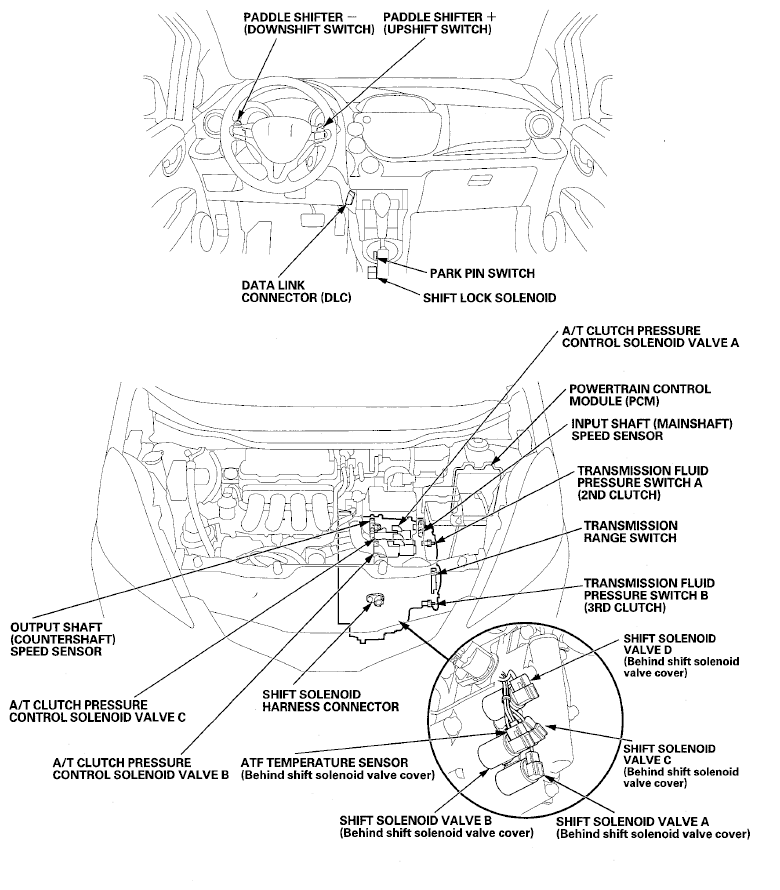

Fig 1: Identifying Five-Position Transmission Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
