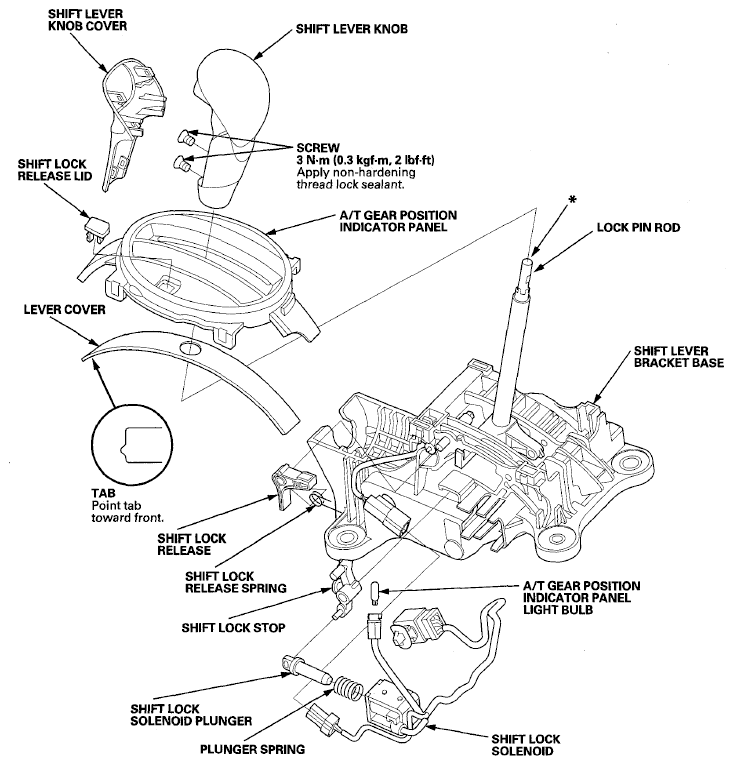

Shift Lever Disassembly/Reassembly
Apply silicone grease to movable joints of the shift lock mechanism, the shift lever, and the lock pin rod. Keep the connector terminals free of silicone grease.
NOTE:
- Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands and gloves.
- Do not wipe off the grease that is applied to the portion of the shift lever marked with an asterisk (*) when you disassemble or assemble it because a special grease is used.
