Shift Lever Installation

  1. Install the shift lever assembly (A).

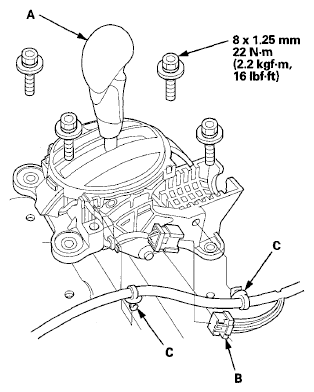

    Fig 1: Installing Shift Lever Assembly
    G06768531Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the shift lock solenoid/park pin switch/A/T gear position indicator panel light connector (B), and install the harness clamps (C) on the shift lever bracket base.
  3. Install the shift cable on the shift lever, and adjust the shift cable (see step  5 ).
