PCM A/T Control System Electrical Connections - Seven-position Transmission

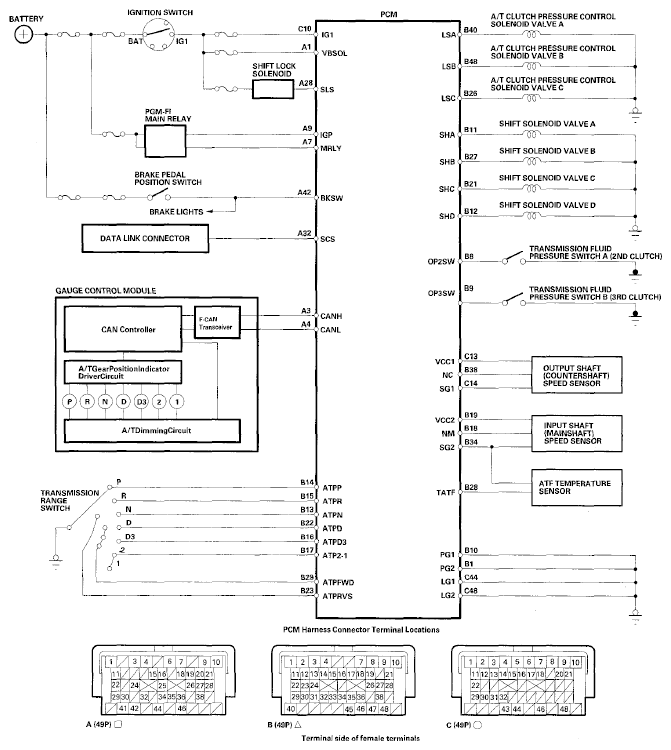

Fig 1: PCM A/T Control System Electrical Connections - Seven-Position Transmission
G06768302Courtesy of AMERICAN HONDA MOTOR CO., INC.
