Regulator Valve Body

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the torque converter check valve, the lock-up shift valve, the 1st accumulator, and the 4th accumulator.

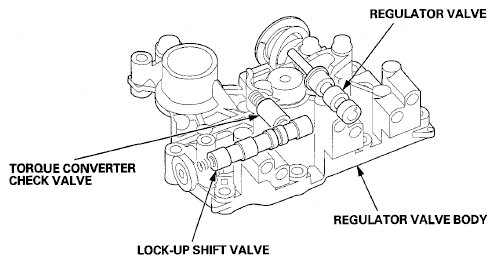

Fig 1: Identifying Regulator Valve Body Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
