P Position

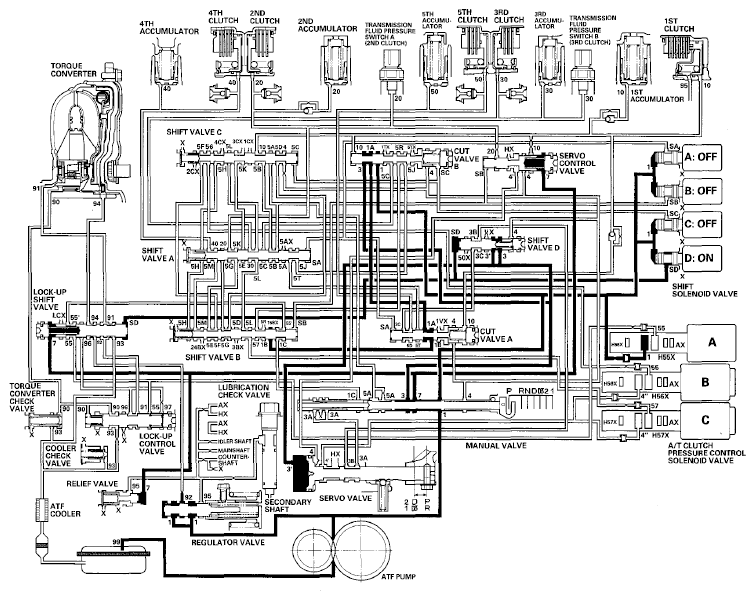

When shifting into P, line pressure (1) becomes line pressure (1), (3), and (7) at the manual valve. The PCM turns shift solenoid valve D ON, and shift solenoid valves A, B, and C OFF. Shift solenoid valve D pressure (SD) is applied to the left end of shift valve D, and shift valve D is moved to the right side to uncover the line pressure port (3) leading to the servo valve. Line pressure (3') from shift valve D flows to the servo valve, and pushes the servo valve to the reverse position. Line pressure (1) is intercepted at cut valve B, line pressure (1B) is intercepted at shift valve B, and hydraulic pressure is not applied to the clutches.
NOTE:
- When used, "left" or "right" indicates direction on the hydraulic circuit.
- The illustration shows the seven-position transmission; the manual-valve-position differs in the five-position transmission.
