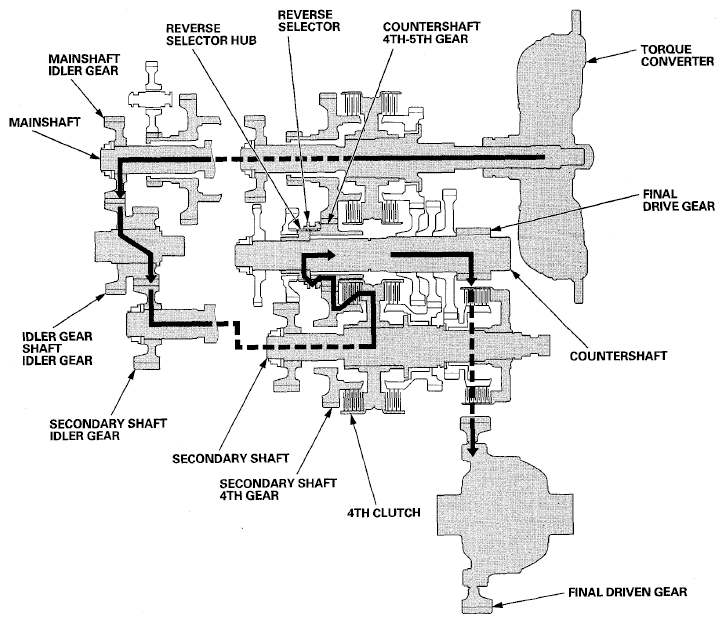

In 4th Gear
- Hydraulic pressure is applied to the 4th clutch, then the 4th clutch engages the secondary shaft 4th gear with the secondary shaft.
- The mainshaft idler gear drives the secondary shaft via the idler gear shaft idler gear and the secondary shaft idler gear.
- The secondary shaft 4th gear drives the countershaft 4th-5th gear.
- The countershaft 4th-5th gear drives the countershaft via the reverse selector, which drives the reverse selector hub.
- Power is transmitted to the final drive gear, which in turn drives the final driven gear.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
