Alternator Removal and Installation: Removal

  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  2. Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION  ).
  3. Remove the intake manifold (see REMOVAL ).
  4. Disconnect the alternator connector (A) and BLK wire (B), then remove the harness clamp (C) from the alternator.

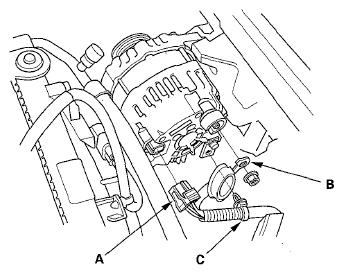

    Fig 1: Identifying Alternator Connector, BLK Wire & Harness Clamp
    G05952317Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the alternator.

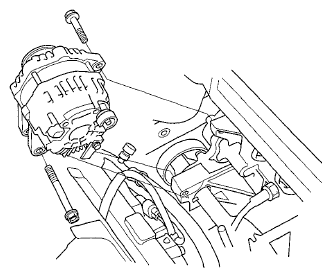

    Fig 2: Identifying Alternator & Bolts
    G05952318Courtesy of AMERICAN HONDA MOTOR CO., INC.
