Circuit Diagram - With Security

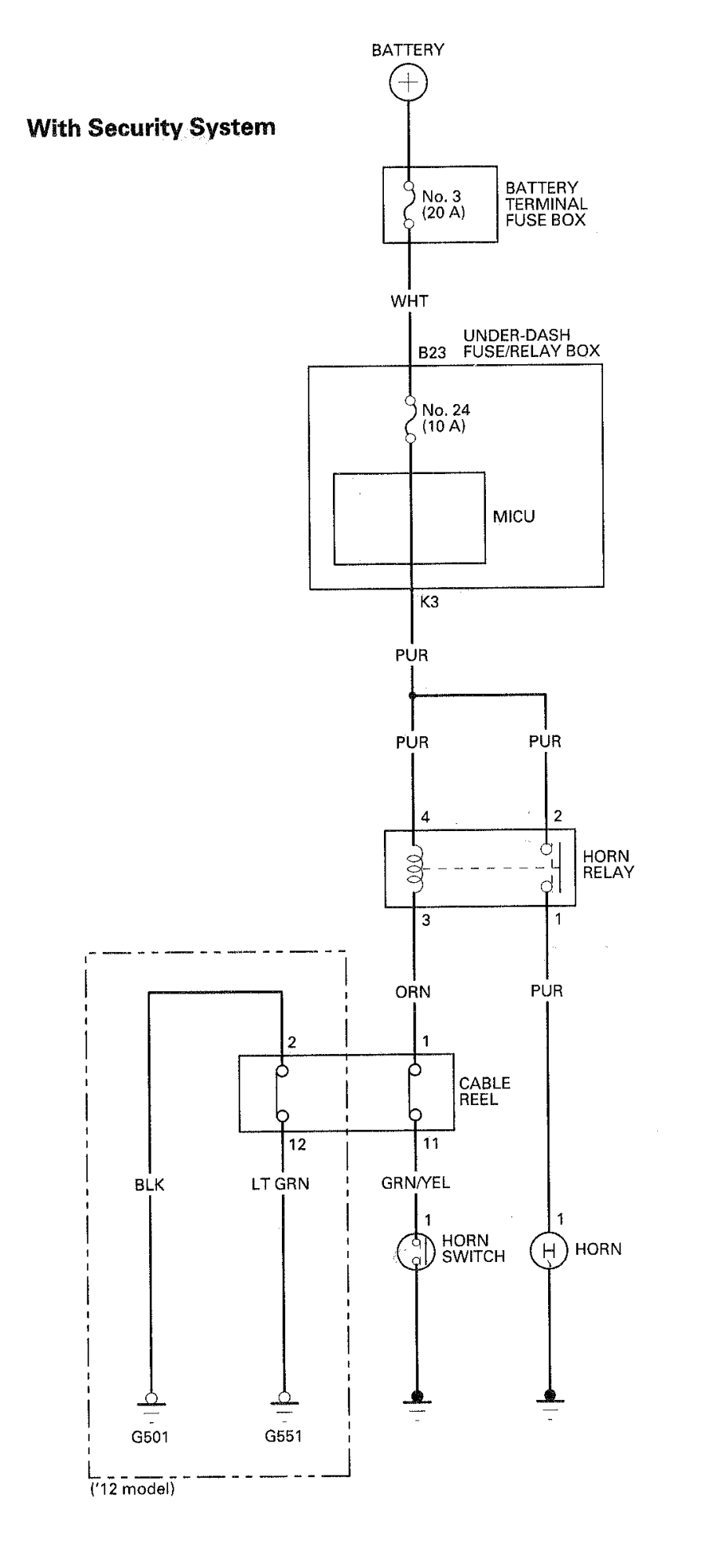

Fig 1: Identifying Horns - Circuit Diagram (With Security)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
