Component Location Index

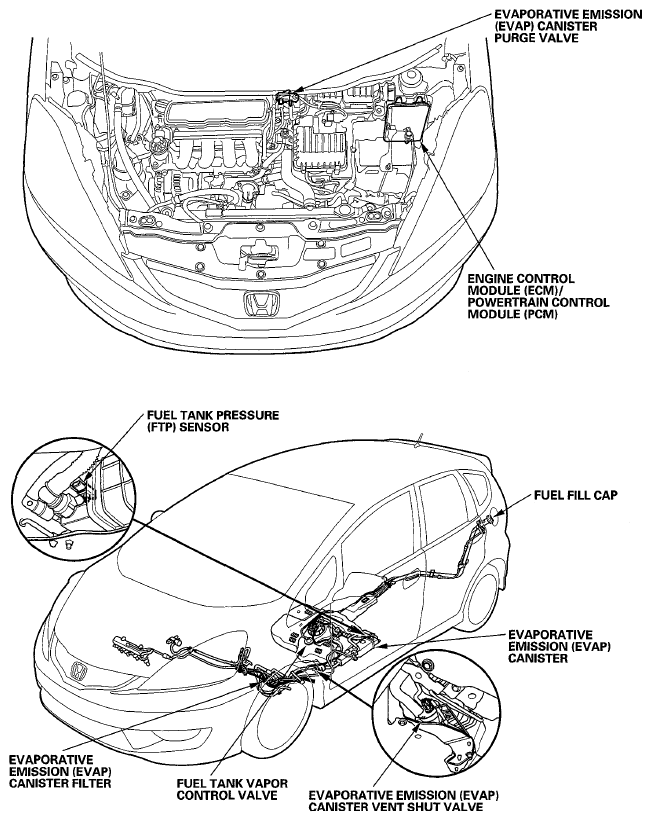

Fig 1: Identifying EVAP System Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
