Cowl: Service and Repair

Under-Cowl Panel Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:

- Windshield wiper arms Service and Repair
- Cowl cover Service and Repair

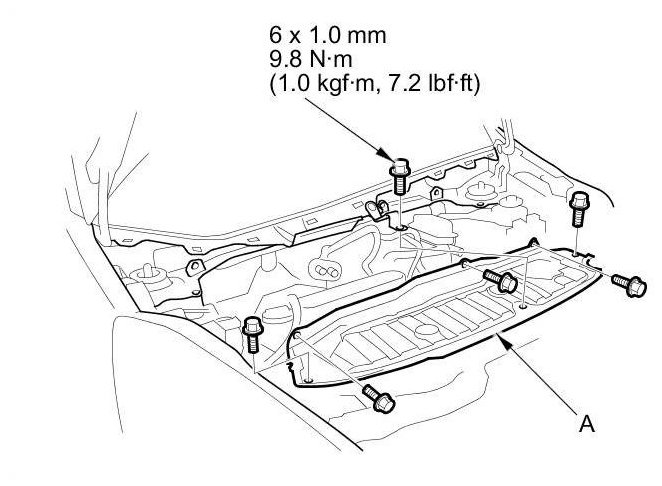

2. Remove the bolts, then remove the under-cowl panel (A).





3. Install the under-cowl panel in the reverse order of removal.
