Subframe: Service and Repair

Subframe Replacement

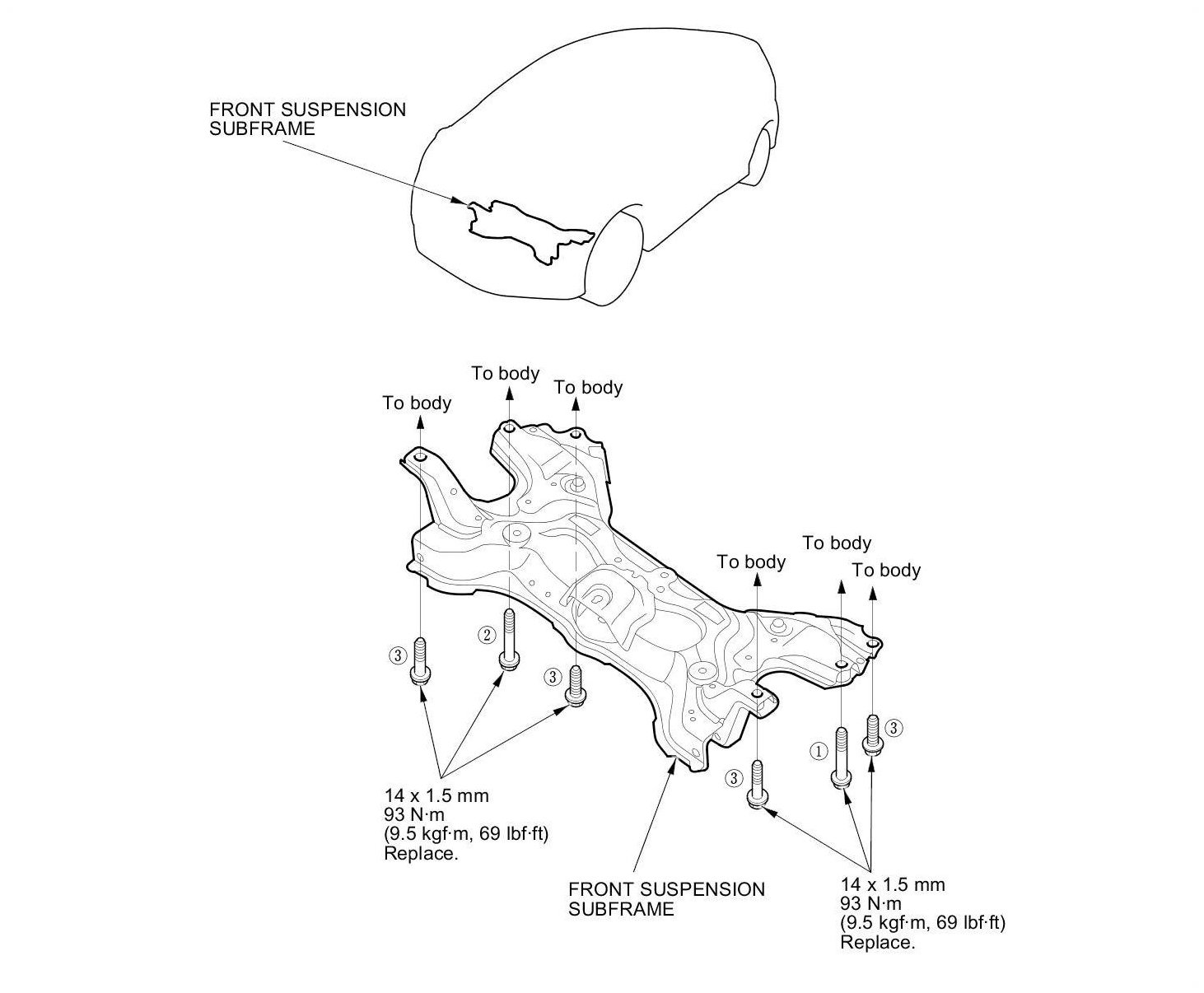

Front Subframe Torque

NOTE:

- After loosening the subframe mounting bolts, be sure to replace them with new ones.
- Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.
- Tighten the new front subframe mounting bolts in the numbered sequence shown.
