View 182 - C601 Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

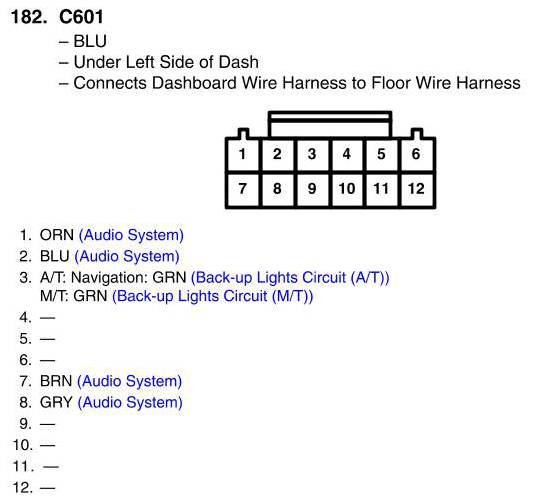

View 182 - C601 Connector View
